FAQ
- Q: What is the power supply of the machine?
A: The standard power supply in China is 3P 220V/380V 50HZ. We also
can customized accordingly.
- Q: What information should the customer provide to get an accurate
quotation from us?
A: The customer should provide the related technical requirements,
drawings, pictures, industries voltage, planned output etc.
- Q: What is the payment terms?
A: 30% T/T as deposit in advance, the balance by T/T after
production.
- Q: What is the delivery time?
A: Within 30 working days after deposit received and cup drawing
confirmed..
- Q: What is the warranty period of the machine?
- A: One year warranty and lifelong technical service, Inspection
before delivery is available. The above clause is ONLY effective
under the machine is being properly used, any artificial misuse or
destroy purposely is not within the limit of Quality Guarantee.
♦Product Details ♦
Repeatedly loose paper
Three paper feeds and multiple mediations to avoid unevenness on
both sides of the paper cup
Photo eye detection
The encoder and Photo eye detection control machine at the same
time, one fan with one cup bottom to avoid paper waste. Failure
alarm, automatic shutdown
automatic oil lubrication
The machine automatically lubricates and lubricates each place that
needs lubrication through copper pipes, saving labor
Sheave drive
The inside of the machine is connected by groove wheels, and the
parts are more tightly connected. It is not easy to loosen during
the operation of the machine and the work is more accurate
Bottom punching system
In the past, the complicated paper feeding process of the bottom
suction paper was prone to overturning. This machine use direct
bottom punching method to avoid the bottom turning.
PFD-9 automatic Double coated paper cup making machine is a multi
station automatic molding machine, it has automatic paper feeding,
cup wall sealing (ultrasonic sealing), cup bottom punch and insert
to cup wall, bottom pre-heating, main heating , bottom knurling,
top curling, discharging and collecting.
Built-in ultrasonic, save the external space of the machine, reduce
the size of the machine and reduce the area occupied by the machine

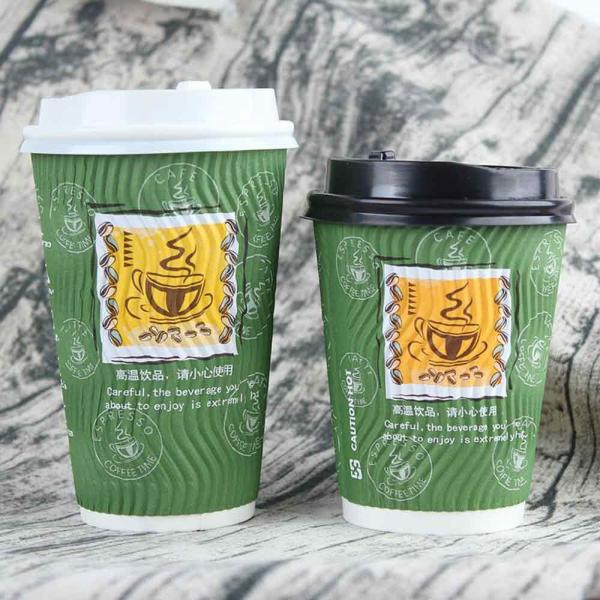

It is ideal equipment for making both hot drinking paper cups for
(coffee, tea, soup, food, snacks, etc).
When you purchase machines, high-quality products, good service and
favorable price should be your consideration. Most importantly, a reliable supplier will help you solve it, so
chose us.
We have won the trust and support from customs home and abroad. In
order to provide better products and service, our company emphasis
on the recruit of the international top-notch talents and has abundant technical power. It is well-worth mentioning that we always follow the principle:to
serve our customers with a high sense of responsibility.Our workers are all high-motivated and our engineers take
care of every detail and adopt strict factory quality standard with
the philosophy "God is in the details".
♦Technical Specification♦
| Type | PFD-9 |
| Cup size: | 40ml-16 oz (other customized size) |
| Production capacity | 65-85 pcs/min |
| Power source: | 380V/ 220V 50HZ(please inform us your power in advance) |
| Suitable Material: | 150-350g/m2 (Double-coated paper) |
| Air source | 0.4-0.6 Mpa |
| Total Power: | 6 KW |
| Weight: | 1680KG |
| Machine size | 2100 x 970 x 1500 mm |
| Package size: | 2200 x 1100 x 1900 mm (4.598CBM) |
♦Components brand♦
| Motor | Main motor | JINGGUANG(CHINA) |
| Knurling motor | SHANGHAI DEDONG(CHINA) |
| educer | HANTIAN(CHINA) |
| gear box | LI ZHONG(CHINA) |
| Electric elements | Frequency converter | EURO (CHINA) |
| All other electrical parts | CHNT(CHINA) |
Ultrasonic
| KEJIAN(CHINA) / Ever Green(TAIWAN.CHINA) |
| sensors | (CHINA) |
| Pneumatic | cylinder | MINGMAN SHAKO (TAIWAN) |
| Bearing | other bearings | (CHINA) |
